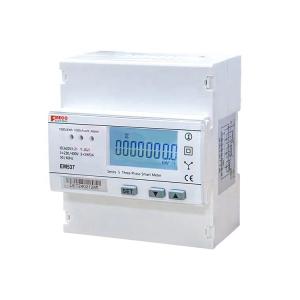

Better than Class1.0 EM537 3*133/230V 3*230/400V 3 Phase 4 Wire Energy Meter Sub Meter Digital Watt Meter

Place of Origin : Shanghai, China

Brand Name : Fineco

Model Number : EM537

Display Type : Digital Only

Phase : Three Phase

Measuring Energy Range : 999999.99

Accuracy Class : better than Class1.0

Output Voltage : 3*133/230V,3*230/400V

Operating Temperature : -25 to +75

Dimensions : 90*104.5*60

Certificate : CE

OEM : yes

Communication : Modbus RTU

Rate : 1-4 rates

LCD : dot matrix LCD screen

Swith power : Wye: 85-380 V L-L

three phase energy meter connection : CT type and direct connected type

MOQ : 100 units

Price : $35.00/units 100-999 units

Contact Now

EM537 3*133/230V 3*230/400V
3 phase 4 wire energy meter sub meter digital watt meter
The EM537 is a digital electricity sub-metering monitoring device that directly measures up to 65 amps of electrical current. It can accurately measure the current, monitor electricity consumption, and provide real-time data to help users manage energy consumption more effectively. This advanced metering technology not only helps users understand energy usage accurately, but also provides important data support for energy conservation. At the same time, the EM537 features convenient installation and operation, providing users with a convenient way to monitor and manage power consumption. In today’s energy-saving and environmentally friendly society, the emergence of the EM537 digital meter undoubtedly brings new possibilities for energy management.
Better than Class1.0 EM537 3*133/230V 3*230/400V 3 Phase 4 Wire Energy Meter Sub Meter Digital Watt Meter
Better than Class1.0 EM537 3*133/230V 3*230/400V 3 Phase 4 Wire Energy Meter Sub Meter Digital Watt Meter
Meter specification：
Voltage(v)
85V to 288V
- Iref
5A
-Itr
0.5A
-Imax
65A
-Imin
0.25A
-Ist
20mA
Power consumption of current circuits(VA)
< 0.01
Power consumption of voltage circuits(W)
< 1.3W
