EM537 3*230/400V 5 65 A Three Phase Bi-Directional Electrical Energy Meter -25 to 75

Name: EM537 3230400V 5 65 A Three Phase BiDirectional Electrical Energy Meter 25 to 75
Brand: Fineco
Price: 35.00 USD

China EM537 3*230/400V 5 65 A Three Phase Bi-Directional Electrical Energy Meter -25 to 75 factory

Place of Origin : Shanghai, China

Brand Name : Fineco

Model Number : EM537

Display Type : Digital Only

Phase : Three Phase

Measuring Energy Range : 999999.99

Accuracy Class : better than Class1.0

Output Voltage : 3*230/400V 3*133/230V

Operating Temperature : -25 to +75

Dimensions : 90*104.5*60

Certificate : CE

OEM : yes

Communication : Modbus RTU

Rate : 1-4 rates

LCD : dot matrix LCD screen

Swith power : Wye: 85-380 V L-N

Type : DC connected three phase bi-directional electrical energy meter

Name : EM537 three phase bi-directional electrical energy meter

Rated voltage : Customize for three phase bi-directional electrical energy meter

MOQ : 100 units

Price : $35.00/units 100-999 units

Contact Now

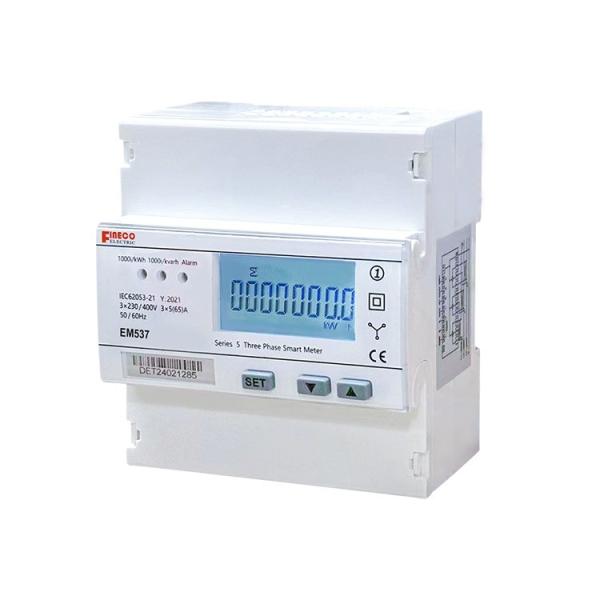

EM537 3*230/400V 5(65)A three phase bi-directional electrical energy meter

It can accurately measure the current, monitor electricity consumption, and provide real-time data to help users manage energy consumption more effectively. This advanced metering technology not only helps users understand energy usage accurately, but also provides important data support for energy conservation. At the same time, the EM537 features convenient installation and operation, providing users with a convenient way to monitor and manage power consumption. In today’s energy-saving and environmentally friendly society, the emergence of the EM537 digital meter undoubtedly brings new possibilities for energy management.

Meter specification：

Voltage(v)	85V to 288V
- Iref	5A
-Itr	0.5A
-Imax	65A
-Imin	0.25A
-Ist	20mA
Power consumption of current circuits(VA)	< 0.01
Power consumption of voltage circuits(W)	< 1.3W

EM537 3*230/400V 5 65 A Three Phase Bi-Directional Electrical Energy Meter -25 to 75 Images
