Accuracy Class 0.33V EM4371 Three Phase Digital Energy Meter for Rogowski Coil Meter

Name: Accuracy Class 033V EM4371 Three Phase Digital Energy Meter for Rogowski Coil Meter
Brand: Fineco
Price: 62.00 USD

China Accuracy Class 0.33V EM4371 Three Phase Digital Energy Meter for Rogowski Coil Meter factory

Place of Origin : Shanghai, China

Brand Name : Fineco

Model Number : EM4371 0.33V

MOQ : 200 units

Price : $62.00/units 200-999 units

Display Type : Digital Only

Phase : Three Phase

Measuring Energy Range : 0-999999.99

Accuracy Class : Cl.1

Output Voltage : 3*110/190~3*240/415

Operating Temperature : -25 to +75℃

Dimensions : 110*157*58.4

Product name : EM4371 0.33V

OEM : yes

Voltage range : 3x110/190 ... 3x240/415

Installation : 35mm Standard DIN Rail

Function : Multifunction Three Phase Energy Meter

Application : Solar Generation

Contact Now

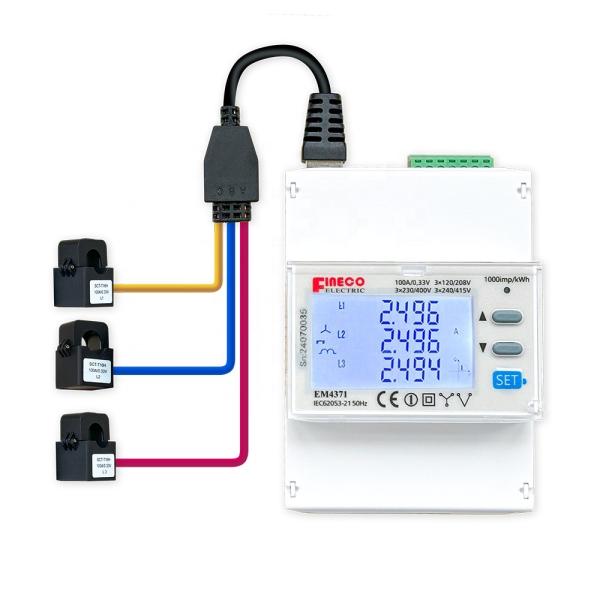

EM4371 0.33V Modbus three Phase digital energy Meter for rogowski coil meter

3 phase smart energy meter

The EM4371 0.33V Modbus three-phase energy meters are equipped with a 0.33V open current transformer or a flexible Rogowskicoil. It is widely used in application scenarios such as building renovation projects, solar inverters, and electric vehicle charging piles to facilitate on-site construction. The meter is a standard four-module 72mm width, which can be used for single-phase two-wire/three-phase three-wire/three-phase four-wire power grids.

The instrument accurately measures the forward and reverse electric energy and grid voltage, current, active power, reactive power, apparent power, power factor and other grid parameters and voltage phase sequence indications. The instrument is connected to an external miniature contactor, which can realize remote on/off control of household equipment; The meter can also be used in a dual-power system to measure grid and generator charges; The instrument's RS485 communication port allows remote system connection to provide all parameters in real time.

Due to the need to confirm whether your require a Rogowski coil or a current transformer, and to determine the size and current specifications, please contact the sales personnel for confirmation before placing your order.

Series Models:

Model	Nominal Volatge	Function
EM4371(0.33V)	3×120/208V~3×240/415V	2×S0+1×RS485+Tariff input

Accuracy Class 0.33V EM4371 Three Phase Digital Energy Meter for Rogowski Coil Meter

Accuracy Class 0.33V EM4371 Three Phase Digital Energy Meter for Rogowski Coil Meter Images
